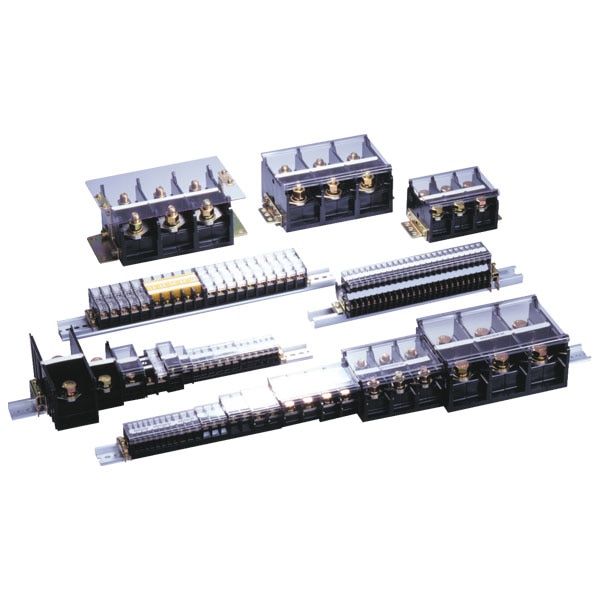

Terminal Blocks
IDEC offers a variety of terminal blocks solution for your control cabinets. The new BTBH-H easy-stack surface mount offers a new way of assembling the required number of terminal blocks without installation tools. With UL/CSA ratings of 10A, 15A, 30A and 50A, the easy-stack terminal blocks can be ordered as components to assemble any number of terminal points and terminal sizes. The easy-stack terminals can also be ordered completely assembled by amp ratings from 2 to 30 poles.
The BN Series has current ratings up to 150A and fuse holders with optional blown-fuse indication while the BNH series has touch-down terminals, current ratings up to 50A. The BN/BNH spring loaded are 10A-50A while the not spring loaded are 10A - 150A.
The BA series is a simple no assembly required terminal blocks and fuse holders with optional blown fuse indication. No end plate required. The BA series Power blocks are available in 3-pole 15A, 20A and 30A sizes and 1-pole power blocks at 40A.
The new BTBH-H easy-stack surface mount offers a new way of assembling the required number of terminal blocks without installation tools. With a twist and lock feature, UL/CSA ratings of 10A, 15A, 30A and 50A, the easy-stack terminal blocks can be ordered as components to assemble any number of terminal points and terminal sizes. The easy-stack terminals can also be ordered completely assembled by amp ratings from 2 to 30 poles.
CATALOG
The BN series of terminal blocks are a traditional screw terminal block. With full size screws (nut and bolt termination on larger models) and current ratings up to 150A, there is a BN series terminal block for almost any application.
A UL94-V0 flammability rating ensures safety. Dust covers and fuse holders with optional blown fuse indication round out the offering. All models mount onto standard 35mm DIN rail.
The BNH series of terminal blocks feature a unique touch-down terminal that makes wiring ring-lugs easier than ever before. These terminals use full size screws in various sizes, held captive by unique cammed carrier armature. Modular construction allows for stacking of multiple size blocks, with only one endplate required per run. Optional jumper strips and dust covers simplify wiring and protect terminals.
The BA series of terminal blocks features a one-piece construction that makes installation very simple. Available in current capacities from 10A to 40A, all models are made from UL94-V0 material for excellent flame and heat resistance. All models mount onto standard 35mm DIN rail. Fuse holders for 1/4 X 1-1/4 size fuses include optional blown fuse indication.
CATALOG
