PLC & HMI
The IDEC PLC+HMI (Programmable Logic Controller + Human Machine Interface) series combines the functionality of a powerful, compact PLC with a robust, user-friendly HMI in a single unit. This dual-function system provides a seamless solution for industrial automation, particularly ideal for applications requiring space efficiency, ease of use, and integration of control and visualization.
All-in-One PLC and HMI:
This compact yet powerful 4.3-inch all-in-one unit combines a Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) to deliver superior performance and functionality. With its dual CPU structure, it optimizes scan time for faster, more efficient processing.
Advanced PLC Control Capabilities:
The unit comes equipped with onboard I/O and offers expandable I/O options to meet various application needs. Built-in analog inputs and outputs provide seamless integration for complex control tasks. Designed to support advanced control features, the unit includes PID control, Pulse Width Modulation (PWM), high-speed inputs, and script programming, giving you the flexibility to tackle a wide range of automation challenges.
Intuitive Touchscreen Interface:
The HMI side uses advanced Projected Capacitive (PCAP) technology, offering high visibility, durability, and functionality. It supports multi-touch gestures and is designed to prevent accidental inputs from water droplets, ensuring reliable operation in various environments.
In addition to its robust hardware, the unit supports open communication protocols like EtherNet/IP, Modbus TCP/IP, and BACnet/IP, as well as IIoT features such as MQTT, making it ideal for modern industrial applications.
Integrated PLC and HMI:
A technologically advanced 7” vivid multi-touch display, with an integrated PLC controller and expandable I/O, provides unique features and advanced functions for I/O applications. Combining a PLC and HMI into a single platform gives many advantages for monitoring and controlling smaller machines, process skids, and HVAC systems.
Advanced PLC Control Capabilities:
With built-in full function controller features and functions, both onboard and expandable I/O, the FT2J Series comes with built-in analog inputs/outputs and enhanced PLC features, including PID, PWM control, multilingual capabilities, script programming and much more.
Intuitive Touchscreen Interface:
The HMI’s projected capacitive touch panel (PCAP) advanced technology—saves space while providing a smaller footprint and improves performance. This PCAP touch panel provides a high degree of visibility, durability, and functionality. In addition to being multi-touch, this PCAP touch panel is compatible with think gloves.

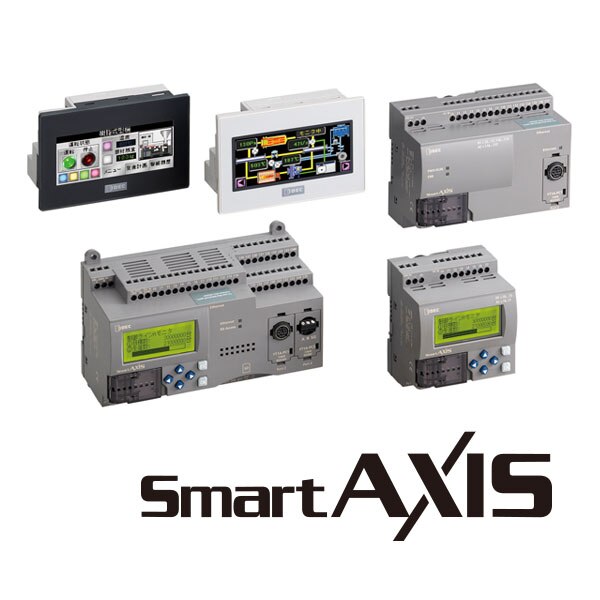

Many small scale applications such as simple machines could benefit by using a programmable graphical interface along with a discrete and analog controller and I/O, but don’t have the panel space or the budget for separate components. The FT1A SmartAXIS Touch address this need by combining operator interface and control in a single compact package, all programmable with IDEC’s PC-based software. The FT1A Touch is available in 12 I/O and 14 I/O configurations with analog I/O expansion capability suitable for advanced analog monitoring and control.
