SX8R Bus Coupler Module
Remote I/O (Input/Output) systems are used to expand the control capabilities of central control systems by allowing devices to be connected over long distances. Instead of having all input and output devices (such as sensors, switches, motors, etc.) wired directly to a central PLC (Programmable Logic Controller) or control system, remote I/O modules are placed close to the devices and connected back to the controller via communication protocols like EtherNet/IP or Modbus. This setup reduces cabling, simplifies installation, and allows for easy expansion of systems. Remote I/O systems are crucial in applications where equipment is spread over large areas, such as in factories, warehouses, oil and gas fields, and transportation systems. The modular design of remote I/O systems often makes it easy to adapt to changes and additions, enhancing flexibility and reducing downtime in industrial operations.
The IDEC SX8R Bus Coupler Remote I/O Module is a high-performance solution for expanding and optimizing automation systems. Designed for seamless communication and remote I/O management, the SX8R simplifies system architecture while maintaining flexibility and efficiency. With its modular design, high-speed data transfer, and industrial-grade durability, the SX8R is an excellent choice for industries requiring reliable and scalable remote I/O solutions.
Key Features and Benefits
Efficient Remote I/O Connectivity
The SX8R enables streamlined connectivity between remote I/O devices and automation controllers. Supporting industrial protocols like Modbus TCP/IP and EtherNet/IP, it ensures seamless communication across diverse systems and devices.
Configuration Software
The SX8R features its own dedicated configuration software, allowing for intuitive setup, monitoring, and management of I/O modules. The software offers powerful tools for system customization, diagnostics, and real-time data visualization, simplifying the integration process.
Scalable and Modular Design
The SX8R supports up to 63 expansion modules per bus coupler, offering a scalable solution for systems with varying I/O requirements. This modularity enables easy customization and growth without the need for extensive hardware changes.
High-Speed and Reliable Communication
The SX8R provides fast and reliable data transfer, ensuring precise control and monitoring of connected devices. Its high-speed performance is ideal for applications requiring real-time responsiveness, such as production lines and process automation.
Space-Saving and Compact Form Factor
The SX8R’s compact design optimizes panel space, making it suitable for installations with limited room. Its space-efficient design supports industries seeking to maximize functionality without increasing system footprint.
Industrial-Grade Durability
Engineered for tough industrial environments, the SX8R boasts rugged construction that resists vibration, extreme temperatures, and dust. Its durable components ensure long-term reliability and reduced maintenance costs.
Remote I/O system using Industrial Ethernet
Remote I/O systems reduce maintenance time, wiring materials, and cable laying in distributed control, as well as decrease the total cost by downsizing the control panel.
The impact of signal weakening and background noise caused by long-distance transmission is minimized.

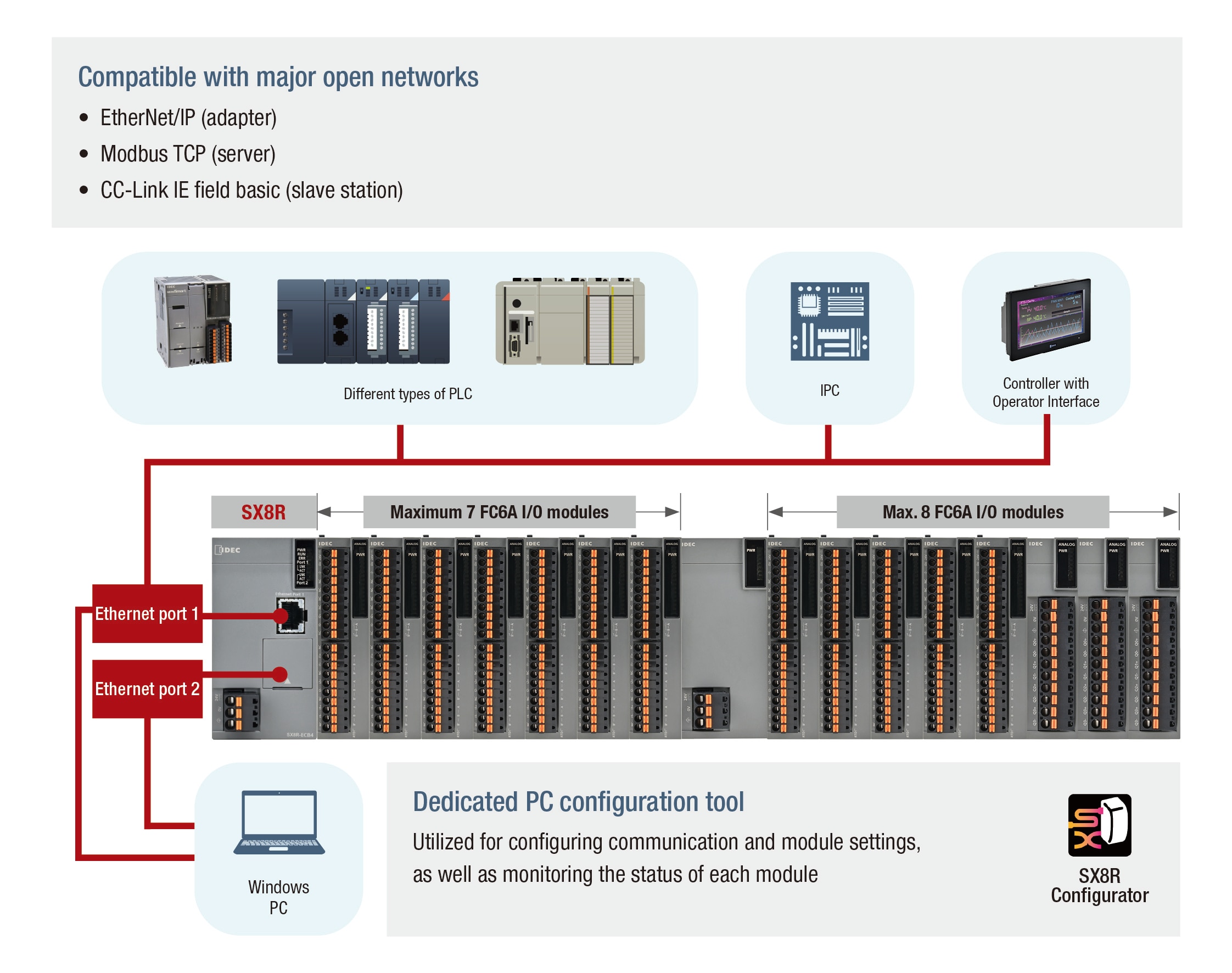

Compatible with major open networks
Supports EtherNet/IP (adapter), Modbus TCP (server), CC-Link IE Basic (slave station)
Simultaneous Communication with Two Master Stations
A controller and monitoring device can be connected at the same time, even on difference networks. You can build a control and monitoring system with a single remote I/O coupler.
*Simultaneous connection of EtherNet/IP and CC-Link IE Field Basic is not possible.
Build a system with flexible I/O modules
Paired with IDEC's MicroSmart FC6A I/O modules, it facilitates the seamless creation of a remote I/O system. A wide variety of MicroSmart FC6A I/O modules (48 models) can be used to build an efficient remote I/O system.
|
Digital input module |
8 models |
8, 16, 32 points |
|
|
Digital output module |
16 models |
Tr. sync / Tr. source / Relay |
8, 16, 32 points |
|
Digital mixed I/O module |
4 models |
Relay |
8, 24 points |
|
Analog input module |
8 models |
Voltage/Current / Thermocouple / RTD |
2, 4, 8 points |
|
Analog output module |
4 models |
Voltage/Current |
2, 4 points |
|
Analog I/O module |
4 models |
Voltage / Current / Thermocouple / RTD |
3, 6 points |
|
Temperature sensor input module |
4 models |
Thermocouple / Thermistor |
4, 8 points |
Connect up to 15 I/O modules
Maximum of 7 I/O modules can be connected.
Additional 8 expansion modules can be connected by installing the expansion interface module.
Connect up to 15 I/O modules
  |
  |
  |
Wide operating temperature range |
I/O module |
Baseless structure |
Suitable for use in hot and cold environments ranging from -25°C to +65°C. |
Wide range of IDEC MicroSmart FC6A modules compliant with various safety standards. Various relay modules also available. |
Minimal space is needed as no base unit installation is required. I/O modules can be added after installation, enabling flexibility. |
